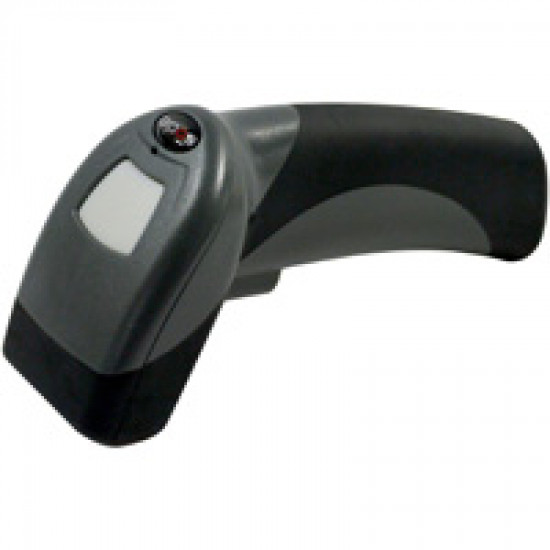

CR1400 Scanner with 1.83 m USB cable
£229.80 (Inc VAT | £275.76)
Article No: 361109
Order Ref: CR1400 + 6ft USB
Total Qty per Pack: 1
Size - Width (mm): 63.00 Mm
CR1400 6ft USB
CR1400 6ft USB
| Ambient Light |
Sunlight: Up To 9,000ft-candles/96,890 Lux |
| Bar Code Type |
Linear And 2D Barcodes |
| Cable Length m |
1.83 |
| Connectivity Options |
USB. Optional: Serial / PS2 |
| Display |
Monocolour LCD Screen |
| Field of View |
43.48ø Horizontal By 31.86ø Vertical |
| Focal Point |
Approximately 104 Mm |
| Operational Modes |
Cabled Only |
| Optional Cable Interfaces |
USB 2.0 Compliant (Full Speed), RS232 |
| Pitch |
ñ 60ø (from Front To Back) |
| Power Requirements |
Reader @ 5 Vdc (mA): Idle = 250mA Peak (Typical) = 300mA Peak (Max) = 345mA |
| Print Contrast Resolution |
25% (1-D Symbologies) Or 35% (PDF417) Absolute Dark/light Reflectance Differential, Measured At 650 Nm |
| Product Drop Test |
Up To 1.8 Metres |
| QTY Base |
1 |
| QTY Pack |
1 |
| QTY Pres |
1 |
| Resolution |
1280 X 1024 Pixels |
| Rotational Tolerance |
ñ 180ø |
| SAP Base UoM Weight |
112 |
| SAP Commodity Imp Code |
8471607000 |
| SAP Country of Origin |
MY |
| SAP EAN Category |
UN |
| SAP Weight |
112 |
| SAP Weight Unit |
G |
| Sensor |
Progressive Scan CMOS 1.33 MP, Processor - RMI Alchemy Au1200? 400MHz |
| Size Depth mm |
114.00 Mm |
| Size Height mm |
180.00 Mm |
| Size Width mm |
63.00 Mm |
| Skew |
ñ 60ø From Plane Parallel To Symbol (side To Side) |
| Target Beam |
Two Targeting LEDs Converge For Optimal Focus |
| UNSPSC |
43211701 |
| UOM Base |
Piece(s) |
| UOM Pack |
Piece |
| UOM Pres |
Piece |
| UPCEAN Code |
75447389749 |
| Use |
Cabled |
| Weight kg |
0.181 |
